Product name:Tyre Shaping and Curing Press Item No.:LL-B1310/2.89?á2
Product Name ：
Tyre Shaping and Curing Press
Item no ：
LL-B1310/2.89?á2
Specification：
55" Mechanical B-Type Double Mould
Description：

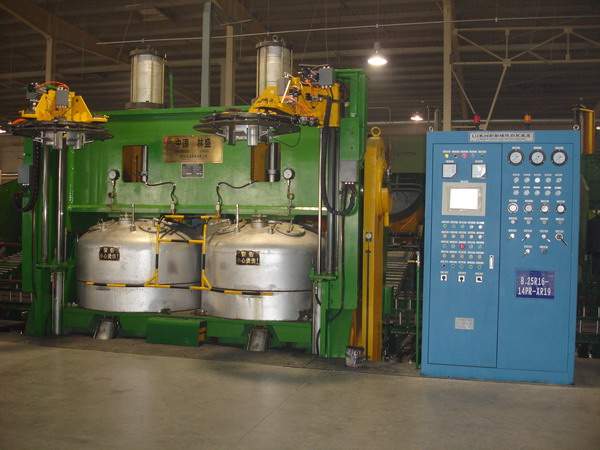

This Curing Press is appliable for curing TBR,LTR and bias tyres with Nitrogen or steam as curing medium.
This Curing Press is a mechanical type, the beam moves vertically and horizontally for tyre loading and unloading. The center mechanism is BOM type and the curing mould is heated by Dome.
Otherfeatures: Single- or Dual-Column Vertical Chuck Loader, Dual-CylinderUnloading Device, Pro-Bar Style Mould Stripping Unit.As per customer'srequest, Auto-Adjusting Device, SMO Drive Device, PCI and Green TyreHolder are available. Curing Piple can also be made into order.
ThisCuring Press uses PLC for real-time control, and industrial PCforHuman-Machine Operation Interface.All parameters can be re-setduringCuring Cycle, and real-time datacollection/preservation,alarming,aswell as data back dating can also berealized through this system. With ethernet interface,Curing Pressgroup-management is available.
* Our Curing Press range is from 40.5" to 125".
